Part 1 What is wood-based panel?

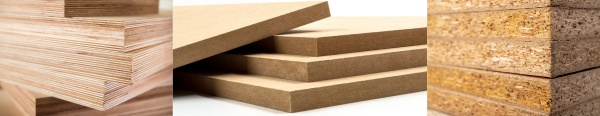

Wood-based panels are made of wood or other non-wood plants, separated into various unit materials through certain mechanical processing, and then glued together with or without adhesives and other additives. They mainly include three categories of products: plywood, particleboard and fiberboard.

Part 2 Pressing process of wood-based panel

In the wood-based panel production line, the slabs need to be pressed twice: once pre-pressing and once hot pressing (final pressing). Pre-pressing is usually required before the final pressing in order to ensure that the board is of good quality.

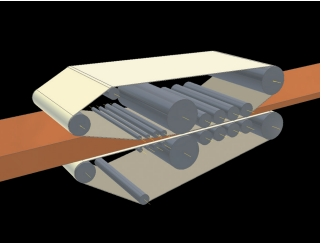

For boards made of shavings, fibres, pre-pressing is required before entering the hot pressing equipment, a process also known as degassing. It is implemented by means of pre-pressing equipment with pre-press belt. The pre-pressing machine applies an initial pressure to the slabs, compacts the density and expels the air, giving them a certain strength and stability for subsequent hot press moulding.

Subsequently, hot press forming equipment presses the slabs under high pressure to form a homogeneous board of a specified thickness. Through the action of pressure and temperature, the glue hardens and the wood particles are plasticized, causing permanent deformation.

Part3 Application of pre-pressed belt on the machine

1. Applicable machine types

Our pre-press belts are suitable for multiple brands of machines on wood-based panel production line, such as Dieffenbacher, Simbelkom, and Yalian.

These machines all need to use pre-press belts to pre-press the plates, but the belts have a certain life span and need to be replaced regularly to ensure the normal operation of the production line. Our pre-press belts can be perfectly used on these machines, replacing the previous belts.

2. Application

The pre-press belts are used in the pre-pressing stage of the wood-based panel manufacturing process. In this stage, the belts needs to withstand greater pressure and friction, while ensuring that the slab does not deform or break during the conveying process.

Features

108. The belt has good anti-static properties to prevent wood chips from being adsorbed and accumulated;
109. The belt has ultra-high strength to ensure low elongation and is not easy to loosen and slip;

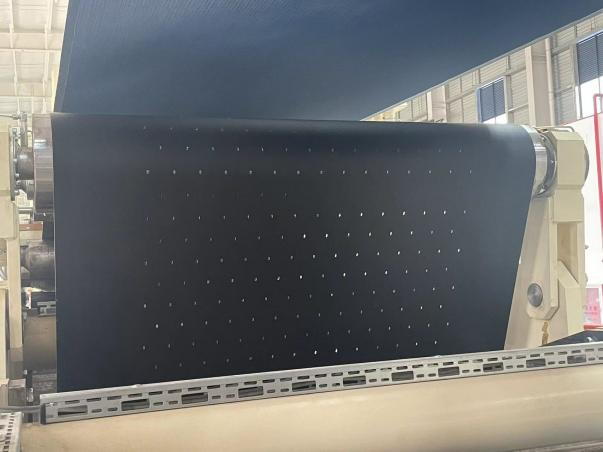

110. The upper pre-pressing belt can be punched to efficiently exhaust air.

We supply pre-press belts and other belts for wood-based panel production lines. If you have any question, please do not hesitate to contact us. Once specifications are provided, we will give our advice and quotation for your reference. Huatao Group would like to help our customers to reduce their cost and get the best quality.
