In modern wood-based panel production, preheating is an important step before hot pressing. Raising the temperature of the mat before it enters the press can help improve heat transfer and support higher production efficiency.
For this reason, the belt used in the preheating section is not simply a material-conveying component. It must simultaneously provide stable conveying, sufficient permeability, temperature resistance, dimensional stability, mechanical strength and reliable tracking.
HUATAO currently offers specialized wood-based panel processing belts for preheating applications, including Matpre-heater Belt, while Dynasteam-type systems and microwave preheating systems represent two important application configurations in the industry.
In a steam preheater, hot steam needs to pass efficiently through the belt structure and reach the mat. The belt therefore needs to provide an appropriate combination of open area, permeability, strength and heat resistance.

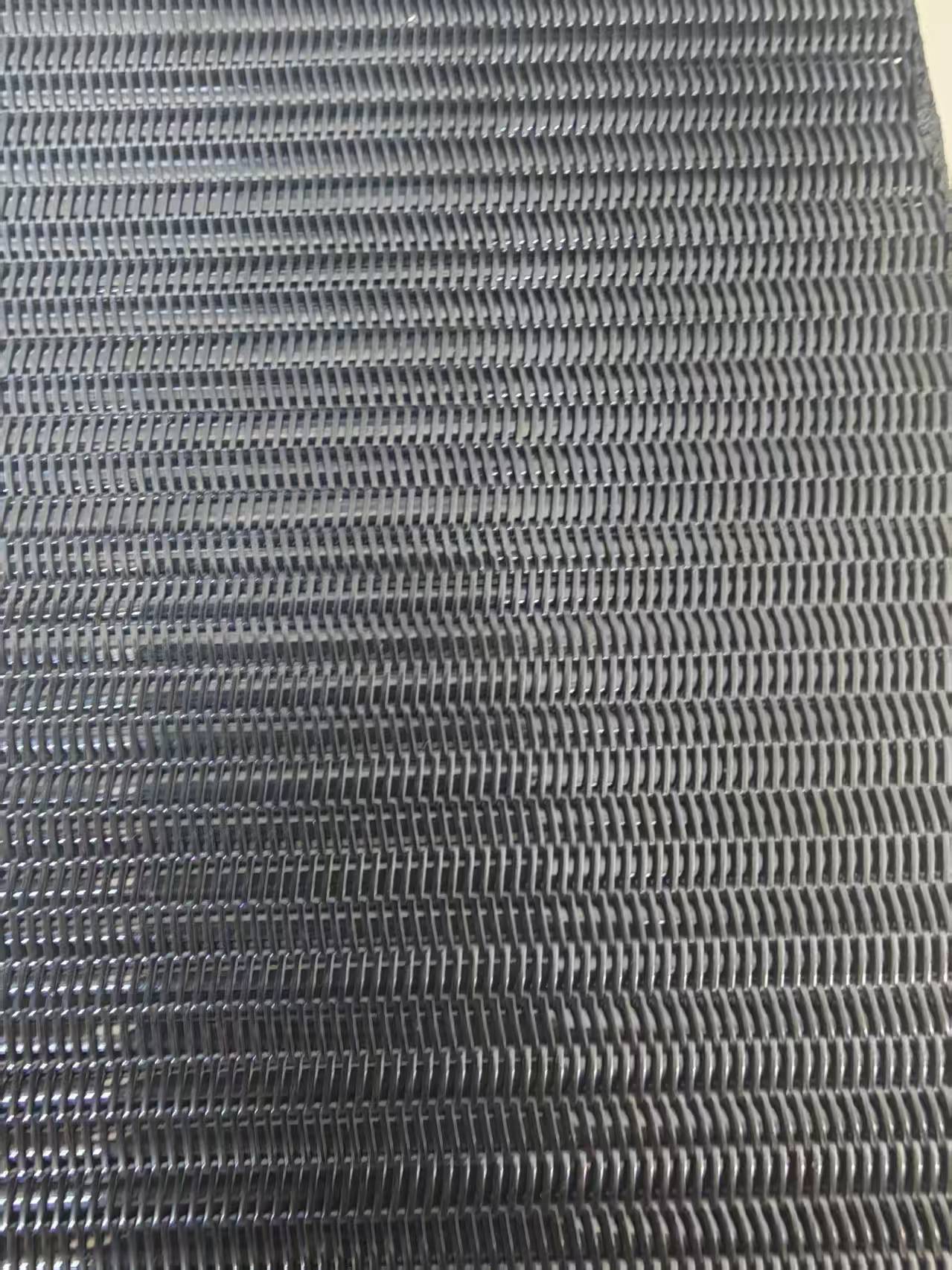

HUATAO's current Matpre-heater Belt information describes its application in the steam pre-heater section of wood-based panel production lines. During operation, the belt allows steam to pass through the mesh structure while the mat is transported between the upper and lower belt arrangements.
Industrial preheating systems are used for products such as MDF, particleboard and OSB. Dieffenbacher's EVOsteam system, for example, directly injects saturated or slightly superheated steam into the mat ahead of the hot press and is designed for MDF, particleboard and OSB production.
The principle is simple:
Steam or Microwave Energy → Mat Preheating → Faster Heat Transfer → More Efficient Pressing
However, belt performance can influence whether the system operates consistently.
The Matpre-heater Belt is the most direct choice for conventional steam preheating sections.
Its main function is to transport and support the mat while allowing steam to penetrate through the belt structure.
For this application, several parameters are particularly important:
HUATAO's current product information states that its Matpre-heater Belt is intended for the steam pre-heater processing section and can maintain stable performance at approximately 120–140°C or higher, while certain material constructions can reach higher long-term and short-term temperature limits. Actual selection should always be based on the operating conditions of the specific machine.
This makes the Matpre-heater Belt suitable for applications where the priority is reliable steam penetration combined with continuous material transport.
The Dynasteam Conveyor Belt is another important belt solution for steam-based preheating applications.
The DYNASTEAM system developed by Imalpal is designed to inject a controlled quantity of steam onto the mat surface before the press. The system is used for MDF, particleboard and OSB lines, and its steam quantity and pressure can be controlled according to production speed and board type.
For this type of system, the belt must work reliably under:
Heat + Moisture + Continuous Tension + Repeated Bending + Continuous Production
Therefore, the belt specification should not be determined only by width and length.
Mesh structure, permeability, belt material, tension, joint design and machine configuration should all be considered.
HUATAO's latest published guidance on steam injection belts emphasizes that material, mesh opening, wire diameter, open area, tensile strength, temperature, steam pressure, belt speed, roller diameter and joint construction can all affect belt performance.
The Microwave Belt belongs to a different preheating technology.
Unlike steam preheating, microwave systems heat the mat through electromagnetic energy. Forbo describes microwave preheating as a method used to heat the chip mat or fiber mat before the continuous press. Its microwave belt systems use upper and lower belts, with high lateral stiffness, antistatic properties, reliable splicing and suitable heating characteristics being important requirements.
Therefore, Microwave Belts should not simply be treated as another type of steam injection belt.
They are better classified as:
Preheating Belts for Microwave-Based Systems
This distinction is important when customers are selecting replacement belts because microwave equipment can impose different material and operating requirements.
A professional preheating belt should be evaluated as a complete engineering component rather than as a simple mesh conveyor.
For steam preheating, sufficient permeability is necessary to allow steam to pass effectively through the belt and reach the mat.
However, maximum open area is not automatically the best solution.
Too large an opening may affect material support or belt strength, while a smaller opening may increase resistance to steam flow. HUATAO's latest technical guidance highlights this balance between steam permeability and mechanical strength.
The belt operates in a hot and humid environment.
The selected material must maintain its required mechanical properties under the actual temperature, steam conditions and exposure time of the production line.
A preheating belt is continuously loaded and tensioned while passing around rollers.
Insufficient strength can contribute to stretching, deformation, tracking instability and premature fatigue.
Stable dimensions are important for maintaining predictable belt tracking and consistent operation, especially on wide industrial machines.
Resin, moisture and wood particles may accumulate on the belt surface. A suitable belt structure can help reduce material adhesion and facilitate cleaning.

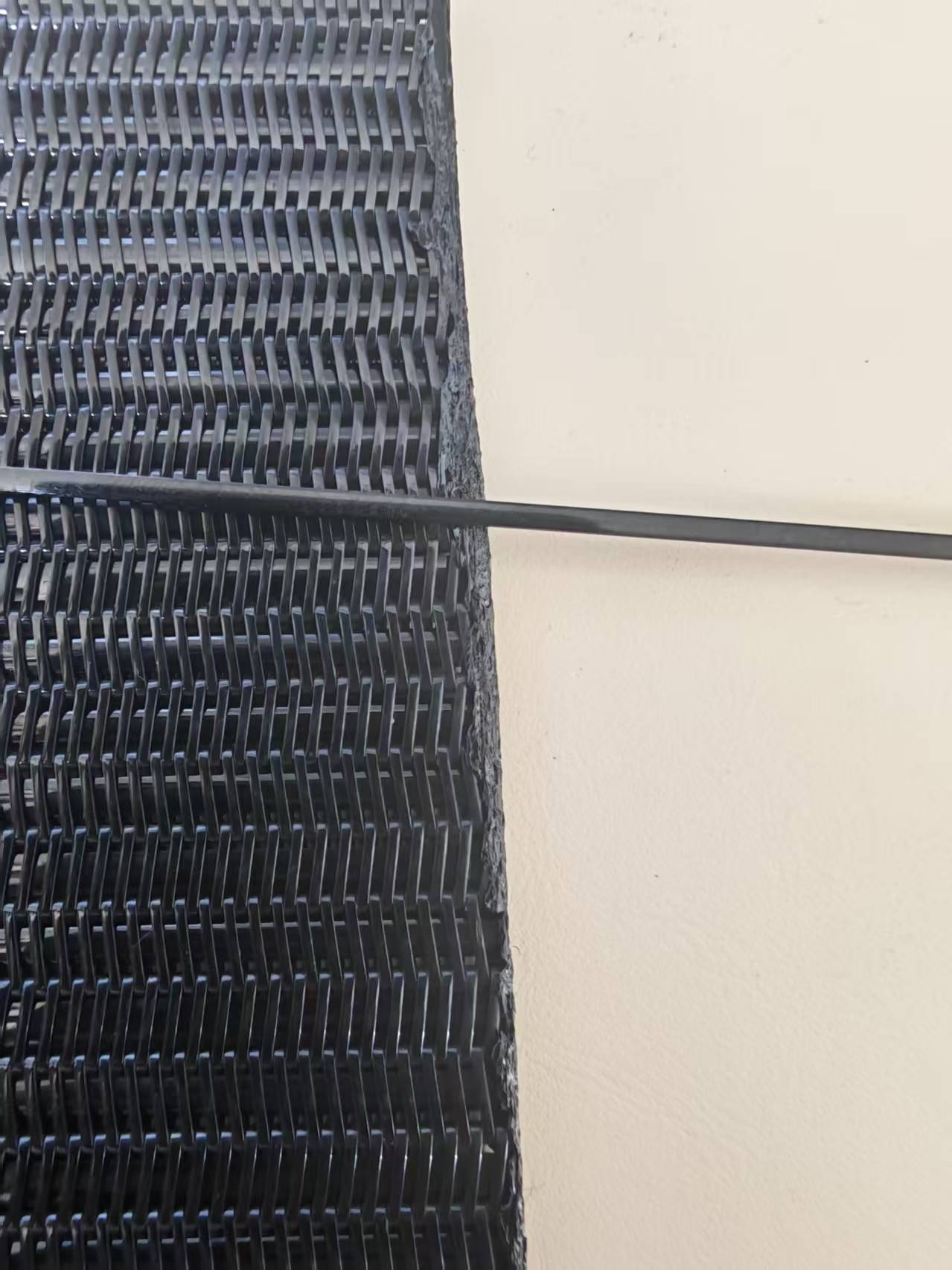

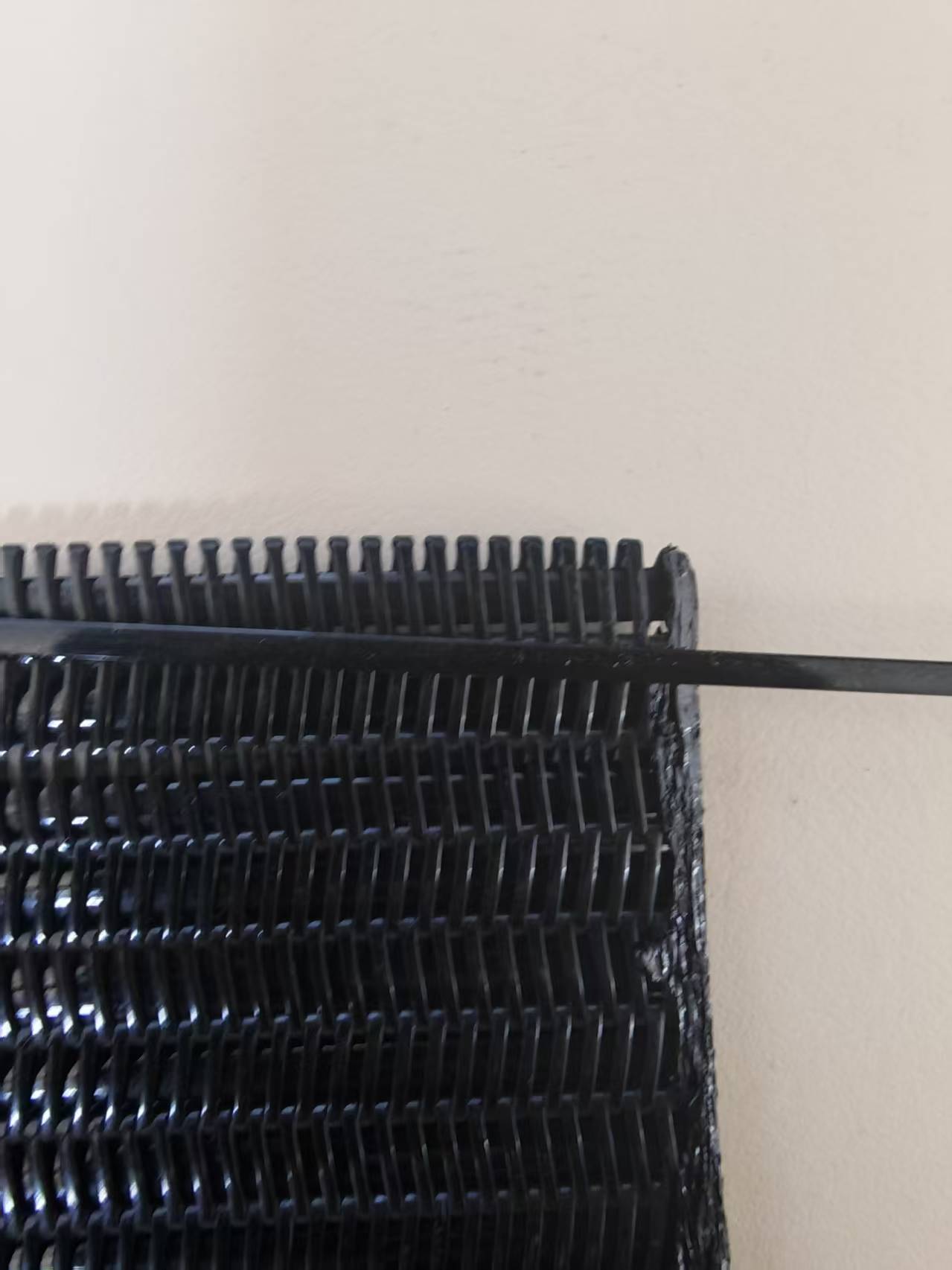

The belt joint repeatedly experiences bending and mechanical stress as the belt circulates.
HUATAO's 2026 technical article specifically notes that an unsuitable joint can contribute to deformation, fatigue, tracking issues and unexpected downtime.
It is easy to assume that a belt with higher temperature resistance is automatically better.
In actual production, the belt needs to balance several characteristics:
Permeability + Strength + Flexibility + Heat Resistance + Tracking + Joint Reliability
A belt with excellent temperature resistance but unsuitable permeability may not deliver the expected steam performance.
Similarly, a belt with a very open mesh structure may not provide sufficient mechanical support for a particular application.
Therefore, the correct question is not:
“Which belt has the highest temperature resistance?”
It is:
“Which belt construction matches the actual machine and operating conditions?”
This principle is consistent with HUATAO's latest steam injection belt selection guidance.
The basic selection logic can be summarized as follows:
| Belt Type | Main Application | Key Considerations |
|---|---|---|
| Matpre-heater Belt | Steam preheater section | Permeability, heat resistance, strength, tracking |
| Dynasteam Conveyor Belt | Dynasteam / steam preheating systems | Steam permeability, mechanical strength, joint and machine compatibility |
| Microwave Belts | Microwave preheating systems | Lateral stiffness, antistatic properties, splicing and microwave-system compatibility |
This classification avoids treating the three belts as interchangeable products.
For customers operating a conventional steam injection system, the first priority should generally be a belt specifically matched to the steam preheater configuration. For microwave equipment, the belt should be selected according to the requirements of the microwave unit.
For wood-based panel plants replacing or upgrading their preheating belts, HUATAO recommends evaluating the belt together with the complete machine configuration.
Important information includes:
HUATAO's latest steam injection belt selection guidance also recommends providing original belt specifications, machine information, operating temperature and steam pressure whenever possible so that the replacement construction can be properly matched.
HUATAO focuses on conveyor belts and processing belts for the wood-based panel industry, covering MDF, HDF, Particle Board, OSB, SPB and other wood-based panel production lines.
Its current wood-based panel belt portfolio includes Matpre-heater Belt, Pre-press Belt, Deaeration Belt, Forming Belt and other specialized processing belts. HUATAO states that its products have been used with equipment from manufacturers including Siempelkamp, Dieffenbacher, Shanghai Board Machine and Dunhua Yalian.
For customers looking for a replacement Matpre-heater Belt, Dynasteam Conveyor Belt or Microwave Belt, the recommended approach is to match the belt structure to the actual production line rather than selecting purely by price or nominal dimensions.
A well-matched preheating belt supports reliable material transfer, stable thermal processing and longer-term production continuity.
